Using your own ground truth

Google Colab Open in Colab Download notebook

If you already have a 3D array that describes your sample (a segmentation, a mesh you voxelized, or shapes you generated), you can simulate it directly.

Make an array

The array holds the number of fluorophores in each voxel. Here: a dozen hollow spherical shells with random centers and radii, ten fluorophores per voxel of shell.

import numpy as np

shape = (64, 256, 256)  # Z, Y, X
z, y, x = np.ogrid[: shape[0], : shape[1], : shape[2]]
rng = np.random.default_rng(0)

truth = np.zeros(shape, dtype=np.float32)
for _ in range(12):
    cz, cy, cx = rng.integers(16, 48), rng.integers(30, 226), rng.integers(30, 226)
    r = rng.integers(8, 28)
    # distance from the center; Z voxels are twice as large as Y and X
    d = np.sqrt(((z - cz) * 2) ** 2 + (y - cy) ** 2 + (x - cx) ** 2)
    truth += (np.abs(d - r) < 1.5) * 10

Simulate it

Simulation.from_ground_truth takes the array and its voxel size in µm, plus any other simulation parameters:

from microsim import schema as ms
from microsim.schema.optical_config import lib

common = dict(
    scale=(0.04, 0.02, 0.02),  # voxel size of the array, in µm
    output_space={"downscale": 4},  # 160 x 80 x 80 nm pixels
    detector=ms.CameraCMOS(qe=0.8, read_noise=1.5),
    settings=ms.Settings(random_seed=0),
)

widefield = ms.Simulation.from_ground_truth(truth, **common).run()

confocal = ms.Simulation.from_ground_truth(
    truth,
    modality=ms.Confocal(),
    channels=[lib.LASER_488.model_copy(update={"power": 5000})],  # W/cm² at focus
    exposure_ms=0.01,  # 10 µs dwell
    **common,
).run()

Plot one plane of each. The digital images have dimensions (c, z, y, x), and their 16 Z planes cover the 64 planes of the array:

import matplotlib.pyplot as plt

panels = {
    "your array (z = 32)": truth[32],
    "widefield": widefield[0, 8],
    "confocal": confocal[0, 8],
}
fig, axes = plt.subplots(1, 3, figsize=(11, 4))
for ax, (title, image) in zip(axes, panels.items()):
    ax.imshow(image, cmap="gray")
    ax.set_title(title)
    ax.axis("off")

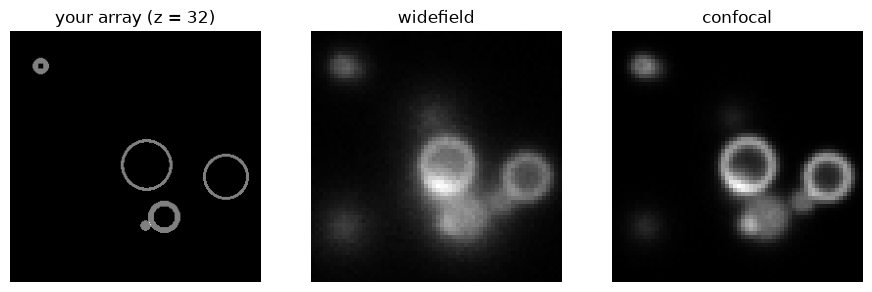

The array, and its simulated widefield and confocal images

The widefield image shows rings from shells centered above and below this plane as blurred discs. The confocal image rejects most of that light.

Choosing a fluorophore

from_ground_truth uses the placeholder fluorophore. To use a real one, or to combine several arrays as separate labels, use a "fixed-array" distribution:

sim = ms.Simulation(
    truth_space={"shape": truth.shape, "scale": (0.04, 0.02, 0.02)},
    sample=[
        {
            "distribution": {"type": "fixed-array", "array": truth},
            "fluorophore": "mScarlet",
        }
    ],
    channels=[lib.TRITC],
)

Every array must have the shape of the truth space.

Things to keep in mind

  • Values are fluorophore counts. A binary mask gives one fluorophore per voxel, which is usually very dim. Scale the array to a realistic labeling density (see Concentration).
  • Voxel size. The array should be sampled finely enough for the optics: 50 nm or less laterally for a high-NA objective. If your data are coarser, upsample them first.
  • Anisotropy. scale can differ between axes, as here, where Z voxels are twice as large.
  • Identity modality. If your array is already a microscope image and you only want the spectral and detector parts of the simulation, use modality=ms.Identity(), which skips the PSF.
