Samples¶

The sample says where fluorophores are and which fluorophores they are. It is a list of labels. Each label combines

• a distribution: how many fluorophores are in each voxel of the truth space, and
• a fluorophore: its spectra, brightness, and lifetime.

sample = ms.Sample(
    labels=[
        ms.FluorophoreDistribution(
            distribution=ms.MatsLines(density=0.5),
            fluorophore="EGFP",
        ),
        ms.FluorophoreDistribution(
            distribution=ms.CosemLabel(dataset="jrc_hela-3", label="mito-mem_pred"),
            fluorophore="mCherry",
            concentration=10,
        ),
    ]
)

ground_truth() draws each label into the truth space and stacks them along the f dimension. The values are fluorophores per voxel.

sample = ms.Sample(labels=[ms.FluorophoreDistribution(distribution=ms.MatsLines())])
sample = [ms.MatsLines()]

Distributions¶

Random lines¶

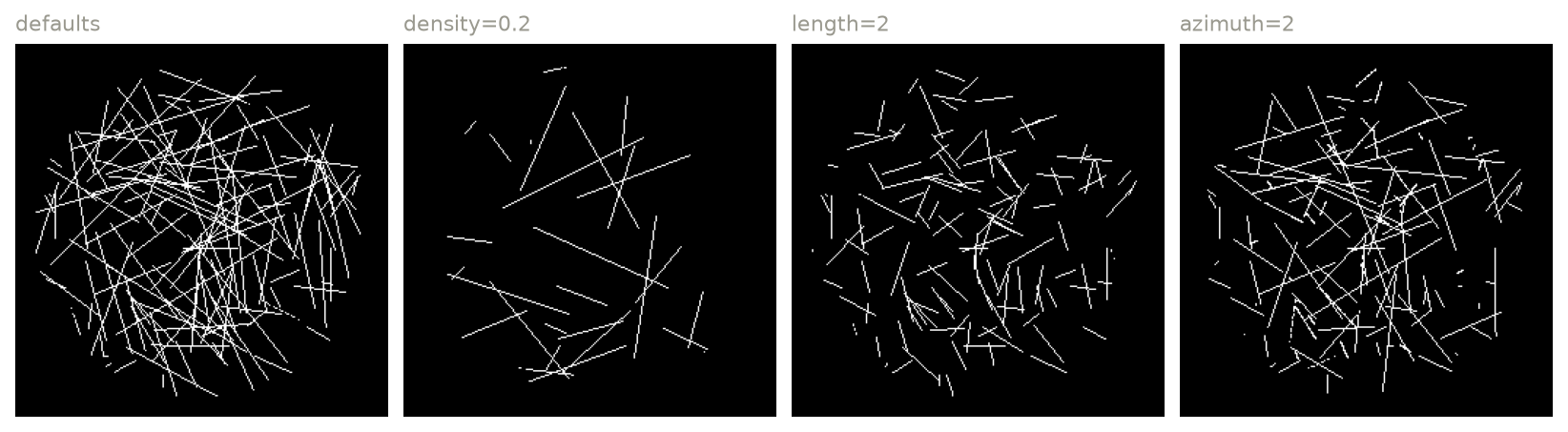

MatsLines draws randomly oriented, one-voxel-wide line segments, with one fluorophore per voxel. It is quick to compute and useful for testing.

OpenOrganelle (COSEM)¶

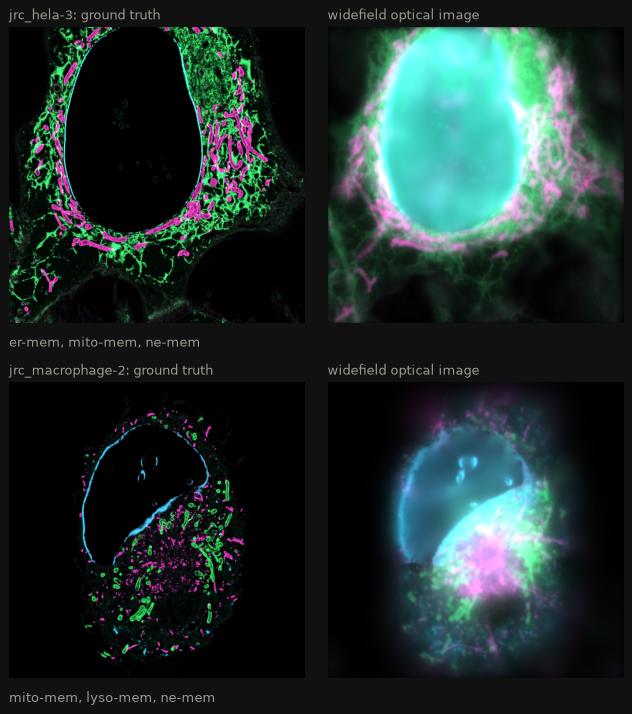

CosemLabel uses segmentations of organelles from FIB-SEM volumes of cells, published by Janelia's COSEM project at OpenOrganelle. These give realistic shapes for the endoplasmic reticulum, mitochondria, nuclear envelope, microtubules, and more.

ms.CosemLabel(dataset="jrc_hela-3", label="er-mem_pred")

• dataset is the dataset ID from the OpenOrganelle website (e.g. jrc_hela-3, jrc_cos7-11).
• label is the name of a segmentation or prediction layer in that dataset (e.g. er-mem_pred, mito-mem_pred, ne_pred), or its description.
• position (optional) shifts the region to extract: the dataset's origin is moved to position (in voxels of the resolution level that is read), and the region around 0 is extracted. By default the region is centered in the dataset.

The data are downloaded on first use and cached. This needs the cosem extra and network access.

Allen Institute neurons¶

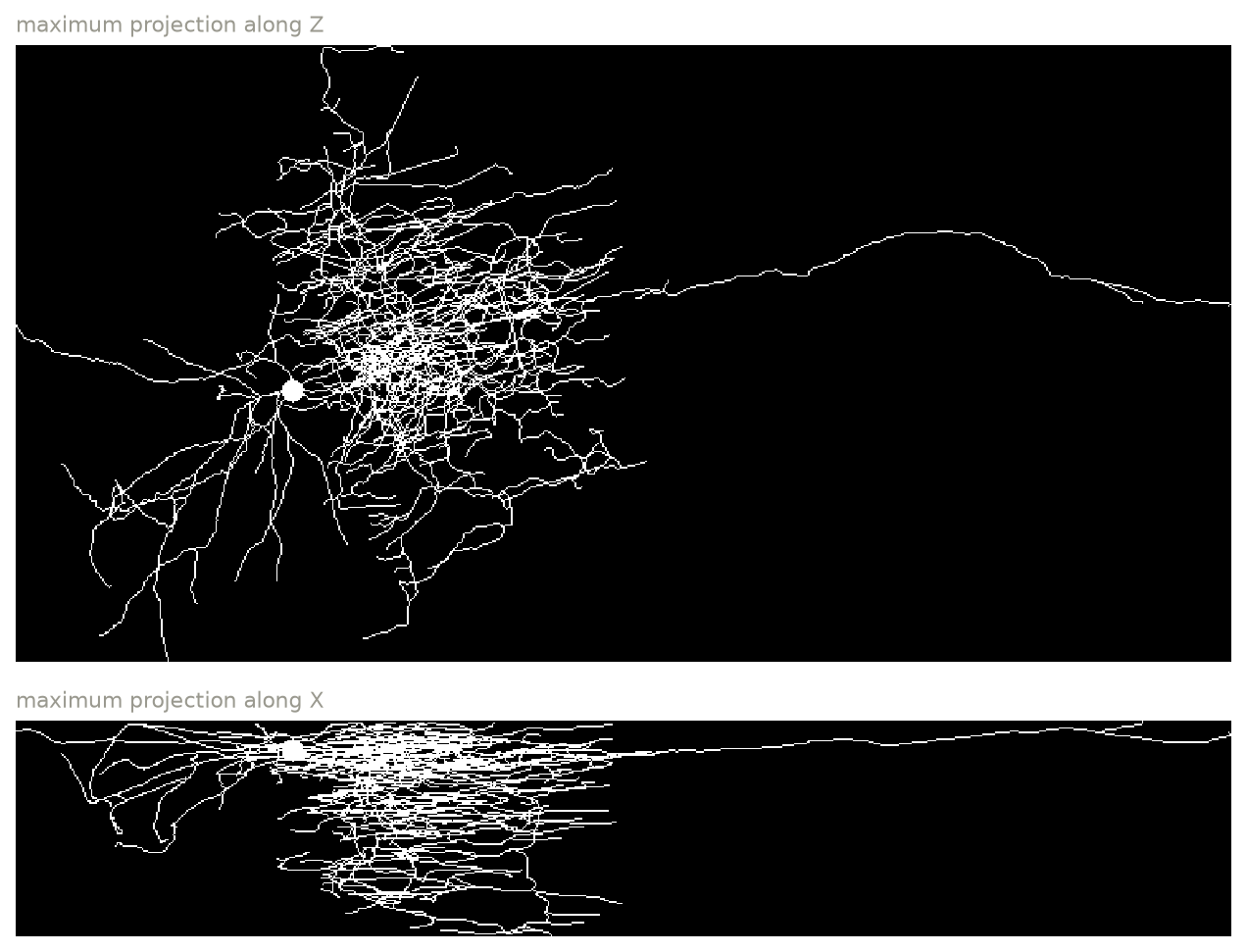

microsim.allen fetches neuron reconstructions from the Allen Cell Types Database and renders them as a 3D mask, which can be used as a fixed array:

from microsim.allen import NeuronReconstruction

mask = NeuronReconstruction.fetch(638976782).binary_mask(voxel_size=1)  # (Z, Y, X)

Your own array¶

If you already have a ground truth as an array, for example from a segmentation, pass it directly with Simulation.from_ground_truth:

sim = ms.Simulation.from_ground_truth(
    my_array,  # (Z, Y, X), fluorophores per voxel
    scale=(0.04, 0.02, 0.02),  # voxel size in µm
    output_space={"downscale": 4},
    modality=ms.Confocal(),
)

This creates a truth space with the array's shape and a single label with the placeholder fluorophore. To choose the fluorophore, or to combine several arrays, build the labels yourself with a "fixed-array" distribution:

sim = ms.Simulation(
    truth_space={"shape": nuclei.shape, "scale": (0.04, 0.02, 0.02)},
    sample=[
        {
            "distribution": {"type": "fixed-array", "array": nuclei},
            "fluorophore": "mTagBFP2",
        },
        {
            "distribution": {"type": "fixed-array", "array": actin},
            "fluorophore": "EGFP",
        },
    ],
)

Each array must have exactly the shape of the truth space.

The own ground truth tutorial has a complete example.

Your own generator¶

Any object with a render(space, xp) method can be used as a distribution. space is an all-zero xarray.DataArray with the shape and coordinates of the truth space; return it with your fluorophore counts added:

import numpy as np
from microsim import schema as ms


class PointSources:
    """Single-voxel emitters at random positions."""

    def __init__(self, n: int = 100, fluors_per_point: int = 500):
        self.n = n
        self.fluors_per_point = fluors_per_point

    def render(self, space, xp=None):
        idx = tuple(np.random.randint(0, s, self.n) for s in space.shape)
        data = np.zeros(space.shape, dtype=space.dtype)
        np.add.at(data, idx, self.fluors_per_point)
        return space + data


sample = [
    ms.FluorophoreDistribution(distribution=PointSources(), fluorophore="mCherry")
]

Each emitter here occupies a single voxel of the truth space, so it is a true point source, much smaller than the PSF. Fluorescent beads are often 100 nm or larger, not much smaller than the PSF; to simulate those, fill a sphere of voxels for each bead instead (as with the shells in the own ground truth tutorial).

With the NumPy backend, np.random is seeded from Settings.random_seed before rendering, so this example is reproducible. Generators like this cannot be saved to JSON. To make one that can, subclass BaseDistribution (a pydantic model).

Fluorophores¶

The simplest way to choose a fluorophore is by name. The spectra, extinction coefficient, quantum yield, and lifetime are then loaded from FPbase:

ms.FluorophoreDistribution(distribution=..., fluorophore="mNeonGreen")

Any fluorescent protein or dye on FPbase with spectra can be used. The name must match the name FPbase displays (case doesn't matter, but other spellings don't work: "Alexa Fluor 488", not "AF488"); the error message suggests the closest match. This needs network access the first time.

To define a fluorophore yourself, give its spectra and photophysical properties:

ms.Fluorophore(
    name="MyDye",
    excitation_spectrum=ms.Spectrum(wavelength=wl_ex, intensity=ex),  # nm, any scale
    emission_spectrum=ms.Spectrum(wavelength=wl_em, intensity=em),
    extinction_coefficient=80_000,  # M⁻¹ cm⁻¹, at the excitation peak
    quantum_yield=0.6,
    lifetime_ns=3.5,
)

What each property does:

The placeholder fluorophore¶

A label without a fluorophore uses mockFluorophore: flat excitation and emission spectra from 300 to 799 nm, an extinction coefficient of 50,000 M⁻¹ cm⁻¹, a quantum yield of 1, and a 1 ns lifetime. It is excited by any light source and passes any emission filter. Use it for testing; for realistic brightness, color, and bleedthrough, use a real fluorophore.

Concentration¶

concentration scales a label's distribution. A number multiplies it, so concentration=10 puts ten fluorophores wherever the distribution had one. A function receives the rendered distribution and returns a new one, for example to add labeling variability:

def patchy(truth):
    rng = np.random.default_rng()
    return truth * rng.poisson(5, size=truth.shape)


ms.FluorophoreDistribution(distribution=..., fluorophore="EGFP", concentration=patchy)

What the values of a distribution mean depends on the distribution:

• MatsLines puts one fluorophore in each voxel of a line (more where lines cross).
• CosemLabel with a segmentation layer (names ending in _seg) gives the number of labeled 4 nm source voxels inside each truth voxel: up to 4096 in a 64 nm voxel. With a prediction layer (names ending in _pred), it gives the stored 8-bit prediction score (0–255) at the matching resolution level. Neither is a number of fluorophores.

So the brightness of a simulation depends strongly on the distribution and the voxel size, and concentration is how you bring the labeling density in line with your experiment. For scale: an EGFP molecule is a barrel about 4.2 nm long and 2.4 nm wide (Yang, Moss & Phillips 1996), about 19 nm³. Even a 10 nm voxel (1000 nm³) could hold only about 50 of them packed solid, and a 64 nm voxel about 14,000. Real labeled structures are much sparser than that: often hundreds to thousands of fluorophores per cubic micrometer.

Caching¶

Generating some ground truths is slow (CosemLabel downloads data), so MatsLines and CosemLabel results are cached on disk, keyed by their parameters, the truth space, the concentration, and (for random distributions) the random seed. See Settings to clear or disable the cache.
